Protocol

protocol: A set of rules that processes use to communicate with each other.

e.g. “At any point a machine can wake up and send ‘hi, how are you?’, and the receiver must reply with ‘good, thanks’.”

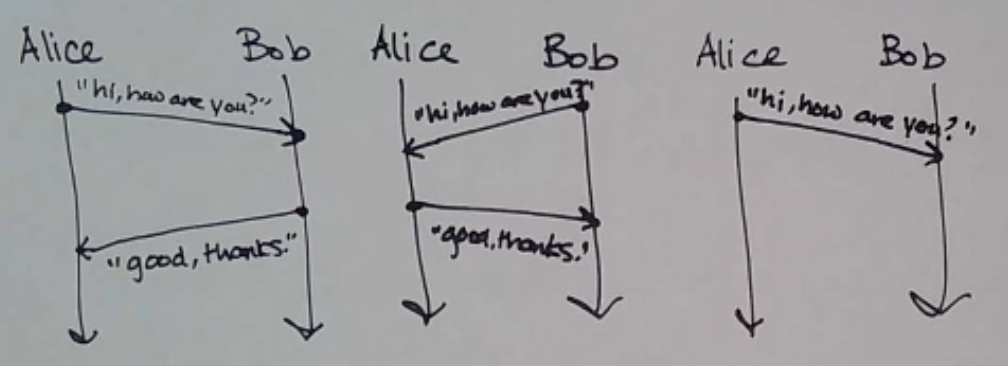

These are all Lamport diagrams of valid runs of the protocol - even though the third doesn’t have a response yet, we may have just caught it before it has had a chance to reply.

There are in fact infinite diagrams representing a valid run of the protocol! We can also draw diagrams representing a violation of the protocol:

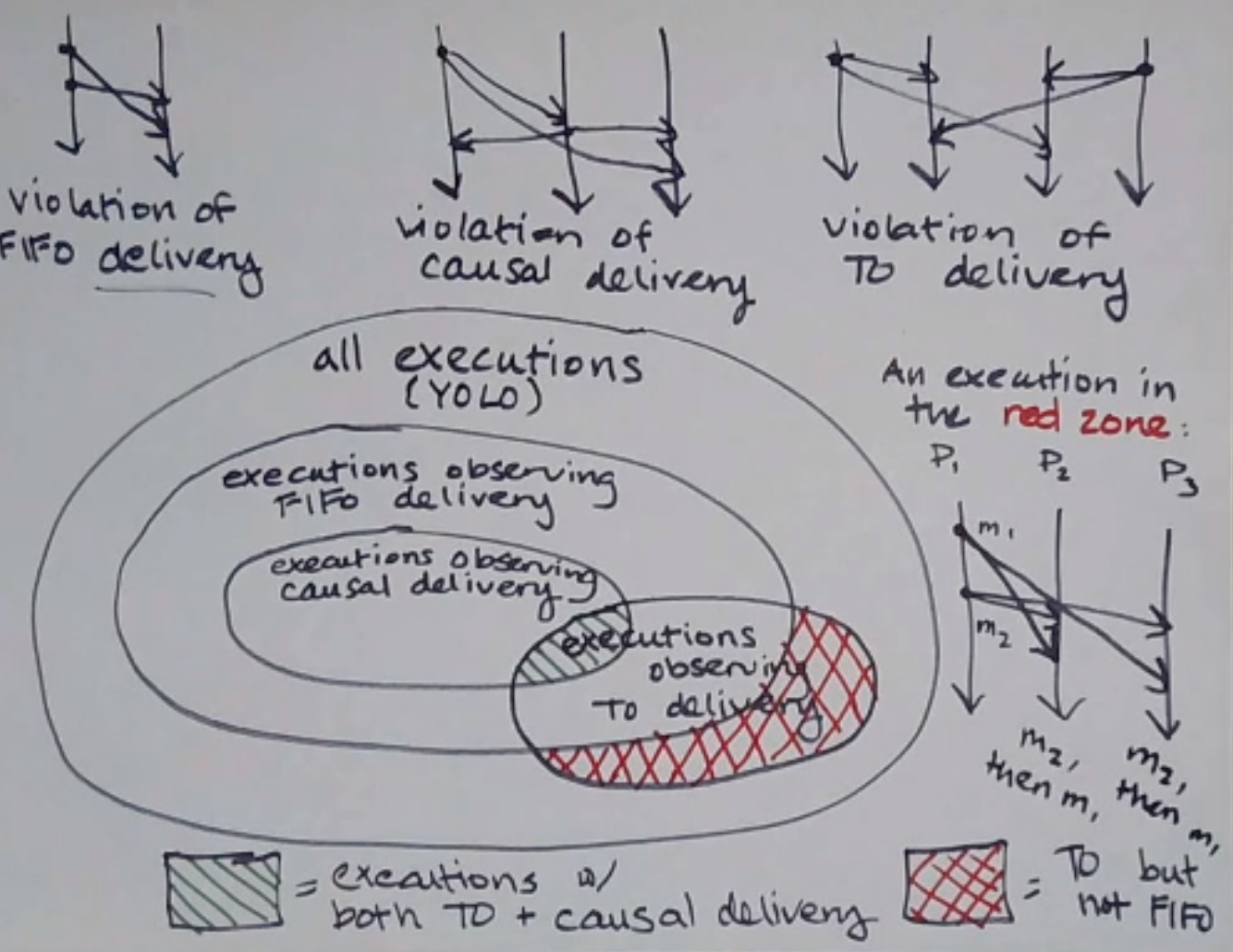

The following are three different correctness properties of executions:

FIFO Delivery

if a process sends message \(m_2\) after message \(m_1\), any process delivering both delivers \(m_1\) first.

Note

Sending a message is something you do
Receiving a message is something that happens to you
Delivering a message is something you can do with a message you receive (you can queue up receives and wait to deliver them)

Most systems programmers don’t have to worry about this often - it’s already part of TCP!

Sequence Numbers

This can be implemented using sequence numbers:

messages are tagged with the sender ID, and sender sequence number
senders increment their sequence number after sending
if a received message’s sequence number is (previously received seq num) + 1, deliver it

However, this only works well if you also have reliable delivery - if not, and the receiver misses one, it will buffer all future messages forever.

There are some solutions to this - like ignoring the missed message and delivering all buffered ones - but if the missed one shows up later, it has to be dropped.

Also, just dropping every single message satisfies FIFO vacuously.

ACK

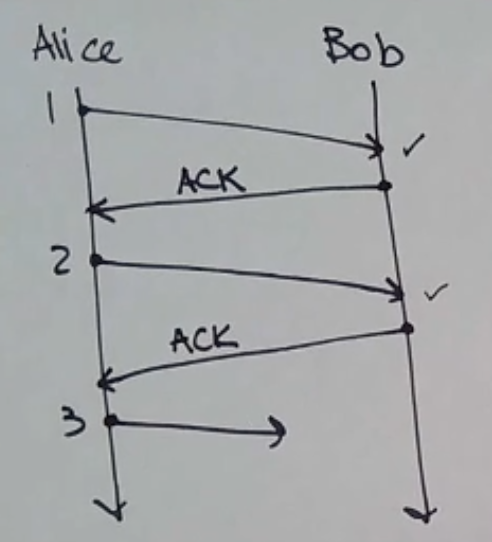

Another implementation is ACK - Alice waits for Bob to send an acknowledgement before sending the next message.

However, it’s a lot slower since it requires a full round trip per message.

Causal Delivery

If \(m_1\)’s send happened before \(m_2\)’s send, then \(m_1\)’s delivery must happen before \(m_2\)’s delivery.

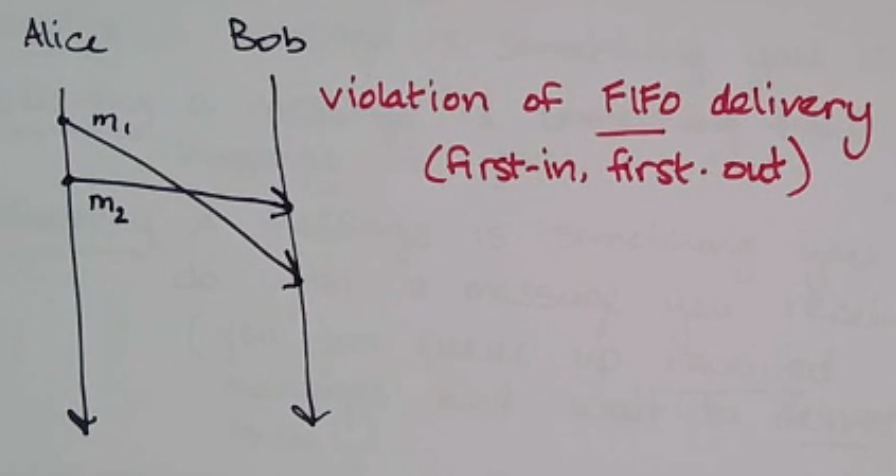

The violation of FIFO delivery above is also a violation of causal delivery:

Note that however, this diagram does not violate FIFO delivery, since FIFO delivery only accounts for messages sent from a single process.

It is a violation of causal delivery, though.

Implementing Causal Broadcast

unicast: 1 sender, 1 receiver (aka point-to-point)

multicast: 1 sender, many receivers

broadcast: 1 sender, all processes in the system receive

For all of these above, no matter how many receivers there are, each send is considered one message.

First, we’ll examine the vector clocks algorithm with a twist: message receives don’t count as events.

Every process keeps a VC, initially 0’s
When a process sends a message, it increments its own position in the VC, and includes the updated VC with the message
When a process delivers a message, it updates its VC to the pointwise maximum of its local VC and the message’s

causal delivery: the property of executions that we care about today

causal broadcast: an algorithm that gives you causal delivery in a setting where all messages are broadcast messages

We want to define a deliverability condition that tells us whether or not a received message is os is not OK to deliver. This deliverability condition will use the vector clock on the message.

deliverability

a message m is deliverable at a process p if:

\(VC(m)[k] = VC(p)[k] + 1\), where k is the sender’s position
\(VC(m)[k] \leq VC(p)[k]\), for every other k

If a message is not deliverable, add it to the delivery queue, and check for deliverability each time you receive a new message (update your VC).

Totally Ordered Delivery

If a process delivers \(m_1\) then \(m_2\), then all processes delivering both \(m_1\) and \(m_2\) deliver \(m_1\) first.

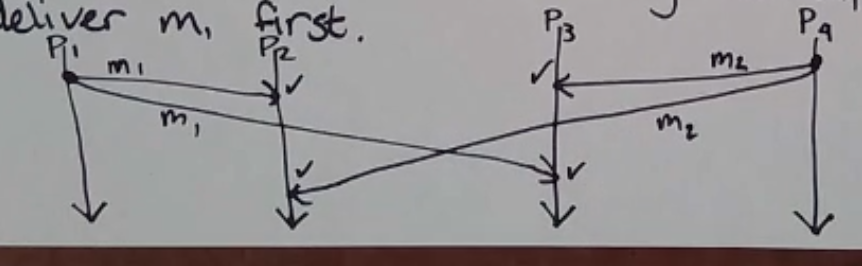

The image below is a violation, since P2 delivers 1 then 2, but P3 delivers 2 then 1.
